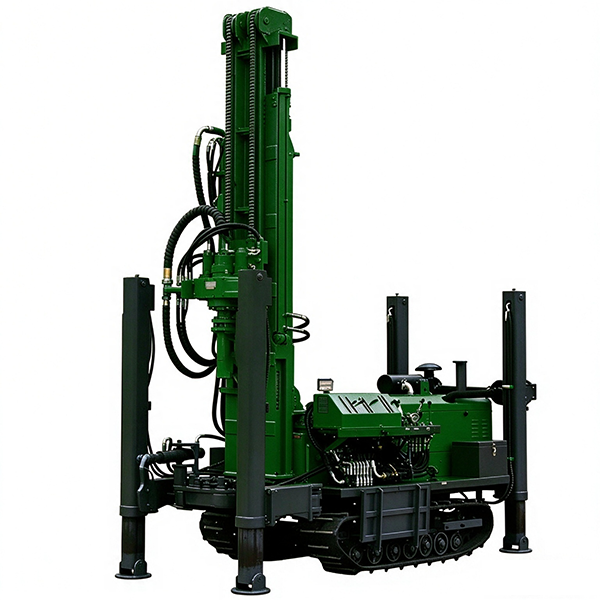

MG180 water well drilling rig

1. Equipped with an 85KW Yuchai turbocharged engine, providing strong power; 2. Patented composite tower design with a 6.6-meter stroke, dual-cylinder lifting, and large tonnage; 3. Each drilling rig's main boom is equipped with a stop to protect the hydraulic cylinders; 4. Drilling rig chassis: Professional excavator chassis, durable, with strong load-bearing capacity, wide chain plates, and minimal damage to hard surfaces; 5. Parallel gearbox design, independent oil pump, ample power, reasonable power distribution, unique hydraulic system design, simple maintenance, and low cost; 6. Travel motor with reducer, durable and long service life; 7. Quick-distribution valve: Three speed settings up to 150-160 rpm, basically achieving dual-use water and air; 8. Each hydraulic hose is covered with a soft management kit, extending hose life; 9. The drilling rig is powered by a diesel engine, and its travel, rotation, propulsion, lifting, outriggers, and unloading rods are all hydraulically controlled; 10. The drilling rig's travel is a crawler-type self-contained structure, facilitating easy movement. Its steel tracked chassis allows for easy movement in urban and rural areas without damaging the ground. 11. High-strength hydraulic outriggers allow for quick and stable leveling of the drilling rig, facilitating loading, unloading, and relocation. 12. A dedicated wellhead design provides a precise drilling center, ensuring vertical drilling and positioning accuracy. 13. Improved mechanical positioning of the trolley and frame.

MG450 Water Well Drilling Rig Features: 1. It is a high-efficiency, multi-functional downhole water well drilling equipment, suitable for drilling various wells such as water wells, agricultural irrigation wells, and geothermal wells. It is particularly suitable for water extraction projects in mountainous areas and rock formations. 2. This machine can drill holes in different strata (rock, mud, sand), with a maximum hole diameter of 450mm. 3. This machine uses a high-torque hydraulic motor power head and brand-name diesel fuel. The hydraulic control system uses a large-diameter hydraulic cylinder. The brand-name diesel fuel has a two-stage air filtration system for protection, and can also directly use clean air from an air compressor. 4. The unique bump design and centralized control operating system make it easy to maintain and operate. 5. This machine uses an excavator tracked chassis, offering high off-road performance. It can also be mounted on a truck for enhanced mobility. 6. Two gears for rotation and feed speed enable it to work in soil and rock formations. 7. Independent cooling dual system uses hydraulic oil cooling and traditional air cooling. Long engine life. 8. Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump
