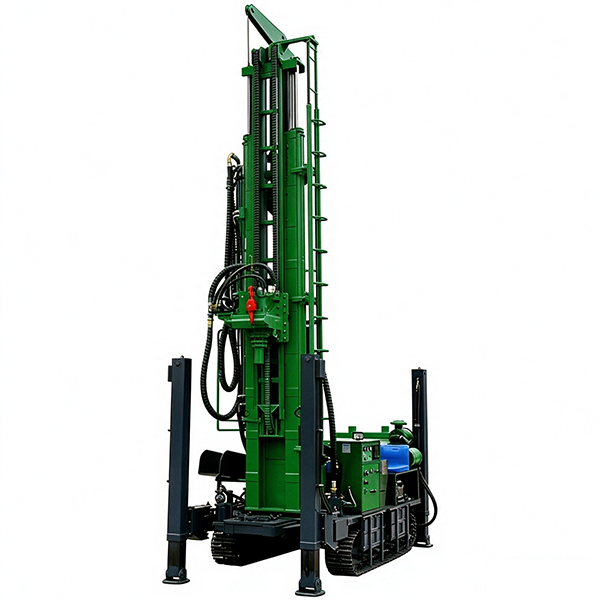

MG350 water well drilling rig

MG260 Water Well Drilling Rig Features: 1. The rig chassis uses a professional travel motor with a reduction gearbox, resulting in a longer service life; 2. The gearbox is integrally molded, with dual motors for stronger power, greater torque, greater durability, and lower maintenance costs; 3. It uses a professional excavator chassis, which is robust, durable, has a high load-bearing capacity, and wide chain tracks, minimizing damage to hard surfaces; 4. Each hydraulic hose is fitted with a thickened protective sleeve, extending the hose's service life; 5. Dual systems can be added: 1. Air power system with an air compressor; 2. Mud pump system with a mud pump.

1. Equipped with an 85KW Yuchai turbocharged engine, providing strong power; 2. Patented composite tower design with a 6.6-meter stroke, dual-cylinder lifting, and large tonnage; 3. Each drilling rig's main boom is equipped with a stop to protect the hydraulic cylinders; 4. Drilling rig chassis: Professional excavator chassis, durable, with strong load-bearing capacity, wide chain plates, and minimal damage to hard surfaces; 5. Parallel gearbox design, independent oil pump, ample power, reasonable power distribution, unique hydraulic system design, simple maintenance, and low cost; 6. Travel motor with reducer, durable and long service life; 7. Quick-distribution valve: Three speed settings up to 150-160 rpm, basically achieving dual-use water and air; 8. Each hydraulic hose is covered with a soft management kit, extending hose life; 9. The drilling rig is powered by a diesel engine, and its travel, rotation, propulsion, lifting, outriggers, and unloading rods are all hydraulically controlled; 10. The drilling rig's travel is a crawler-type self-contained structure, facilitating easy movement. Its steel tracked chassis allows for easy movement in urban and rural areas without damaging the ground. 11. High-strength hydraulic outriggers allow for quick and stable leveling of the drilling rig, facilitating loading, unloading, and relocation. 12. A dedicated wellhead design provides a precise drilling center, ensuring vertical drilling and positioning accuracy. 13. Improved mechanical positioning of the trolley and frame.

Features of the MG600 Water Well Drilling Rig: 1. The FY600 series water well drilling rig adopts full hydraulic control, with top drive to rotate the drill bit, resulting in high drilling efficiency. 2. Equipped with a Cummins 113kW generator, providing strong power and a long service life. It also features an Italian imported oil pump, a triple-pump system. 3. The overall layout is reasonable, allowing for tractor-style or all-terrain chassis transport, ensuring good mobility. 4. It is highly flexible on difficult terrain and can be widely used in hydrological well resource exploration, coalbed methane, shallow shale gas, geothermal energy, and other fields. It can also be used for coal mine gas extraction and salvage operations. 5. The top-mounted drive head has a large spindle diameter, suitable for various drilling operations such as mud drilling, air drilling, and air foam drilling, meeting the drilling needs of different formations. 6. Independent cooling dual system: It adopts hydraulic oil temperature cooling and is equipped with traditional air cooling. It also features a long engine life. 7. Dual systems: 1. Air power system with air compressor; 2. Mud pump system with mud pump.
